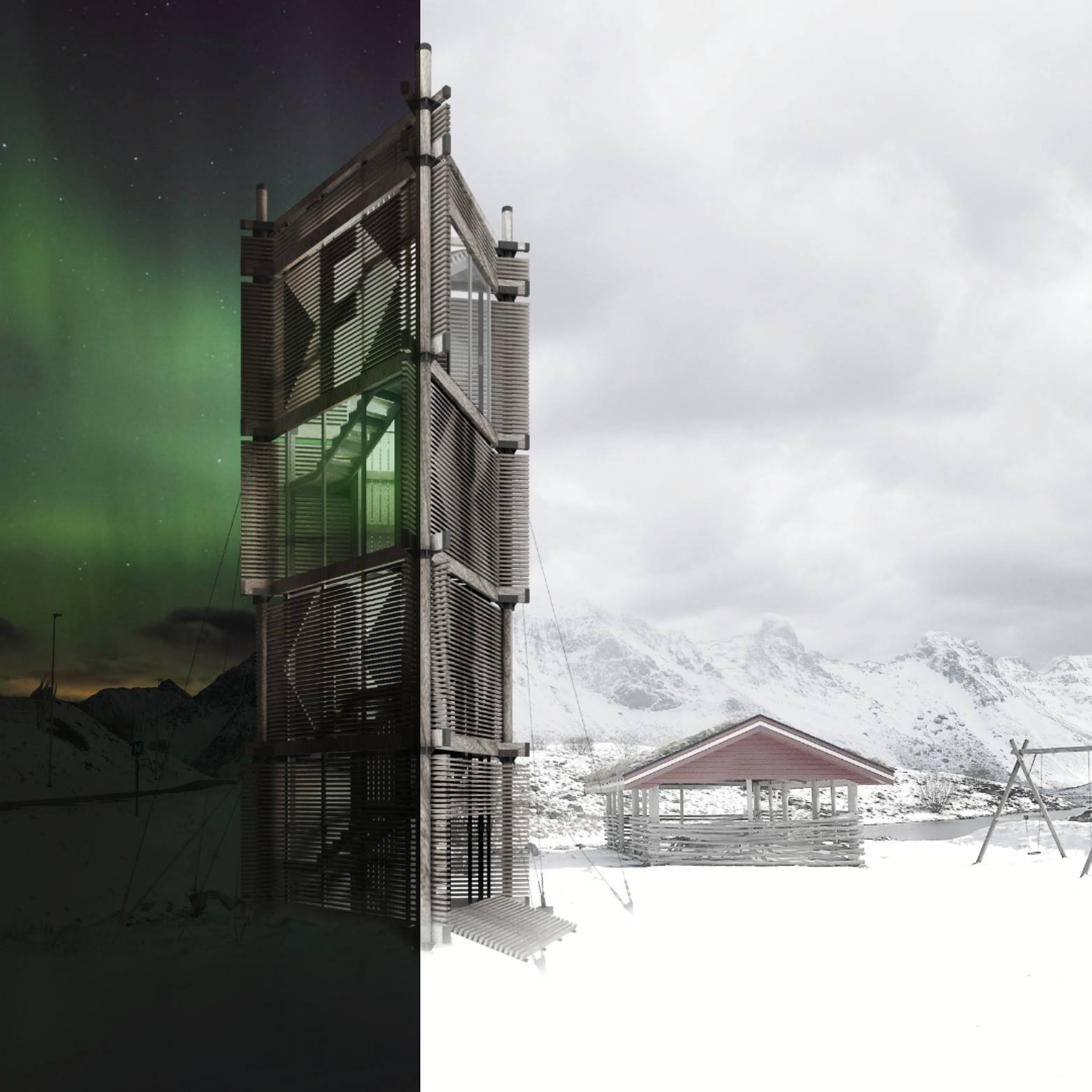

The stacked rotation of a variable core + facade module produces a flexible system for a new tourism infrastructure in Lofoten, Norway.
       
     

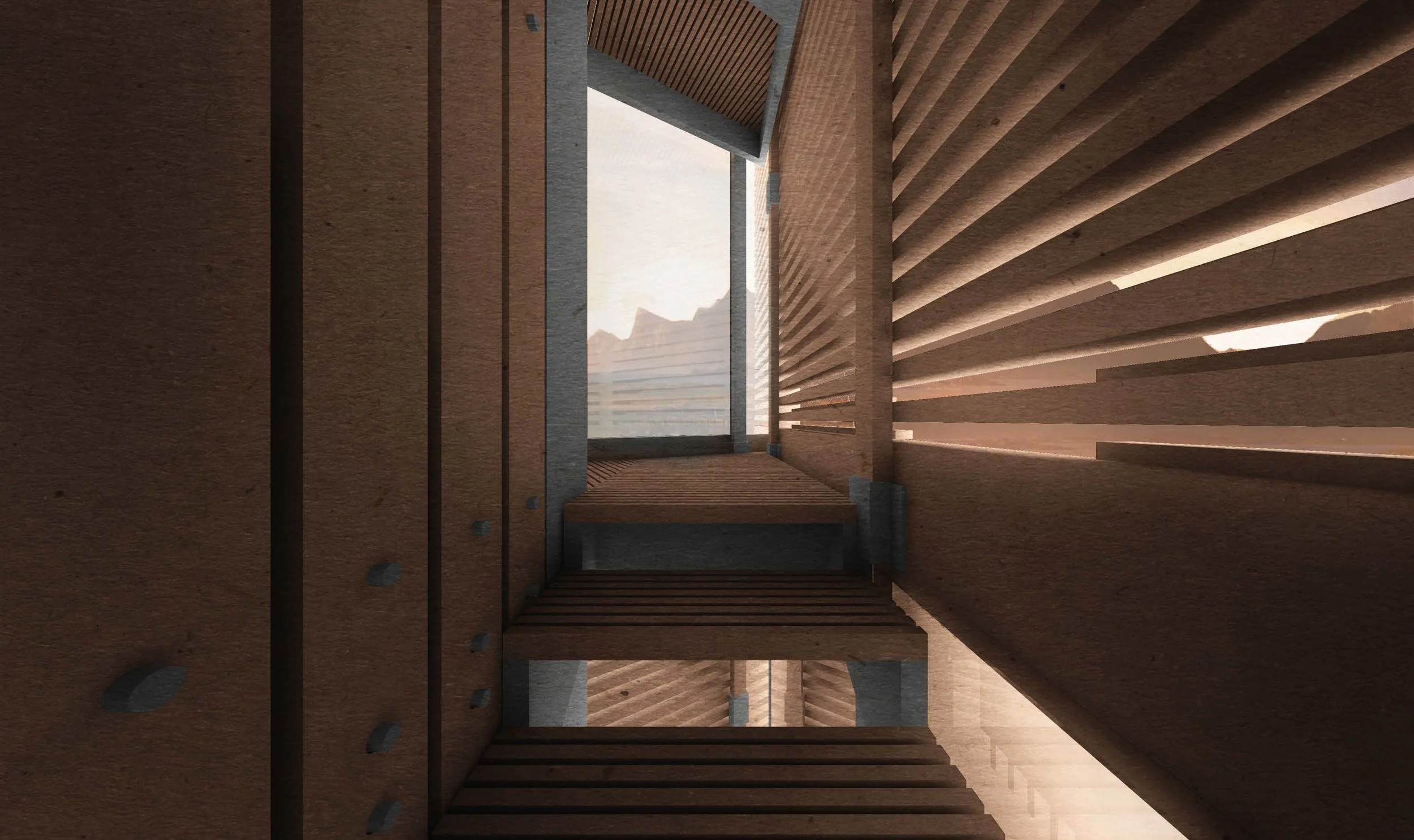

 Horizontal facade + vertical core
       
     

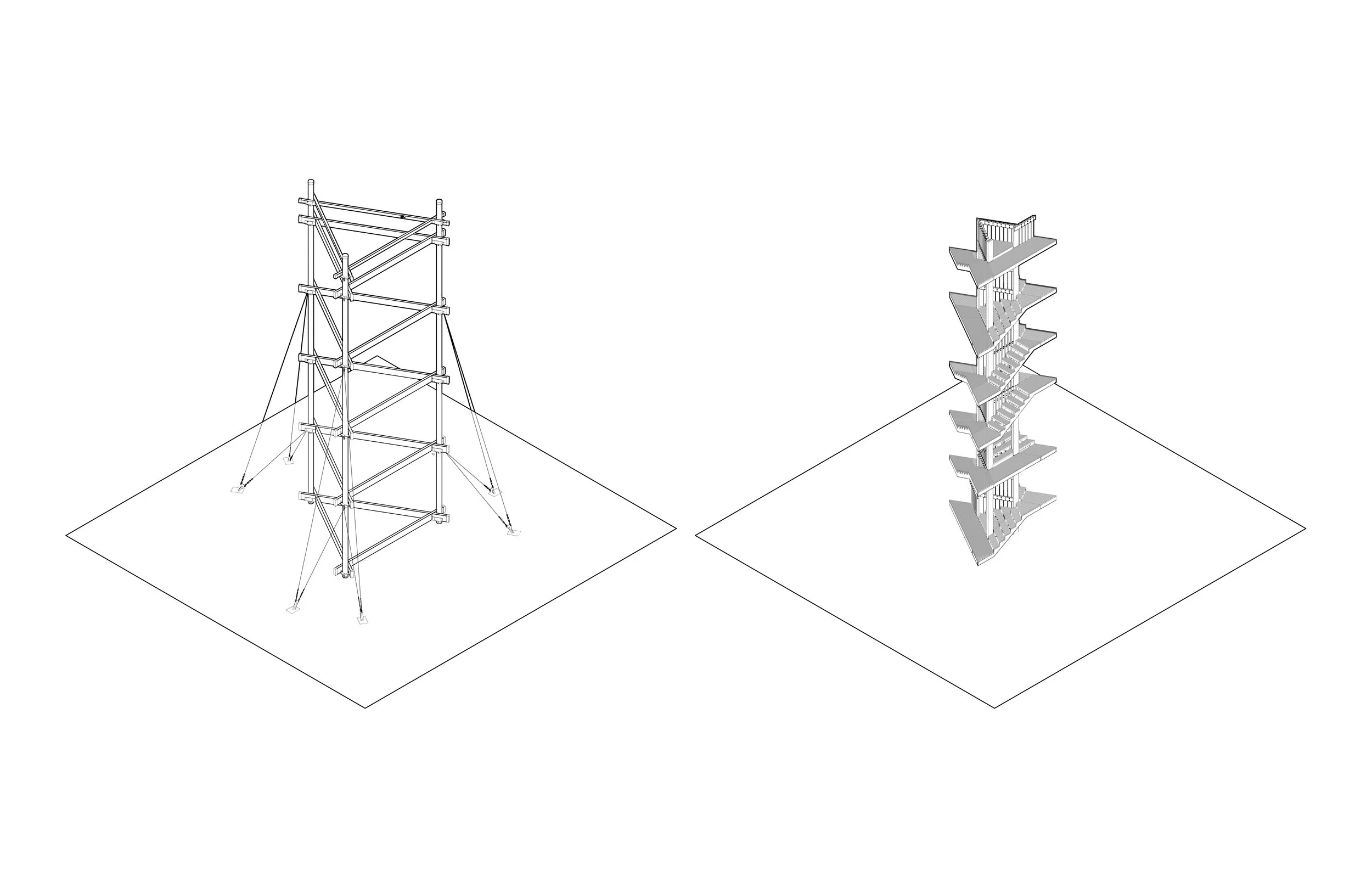

 Superstructure + prefab core
       
     

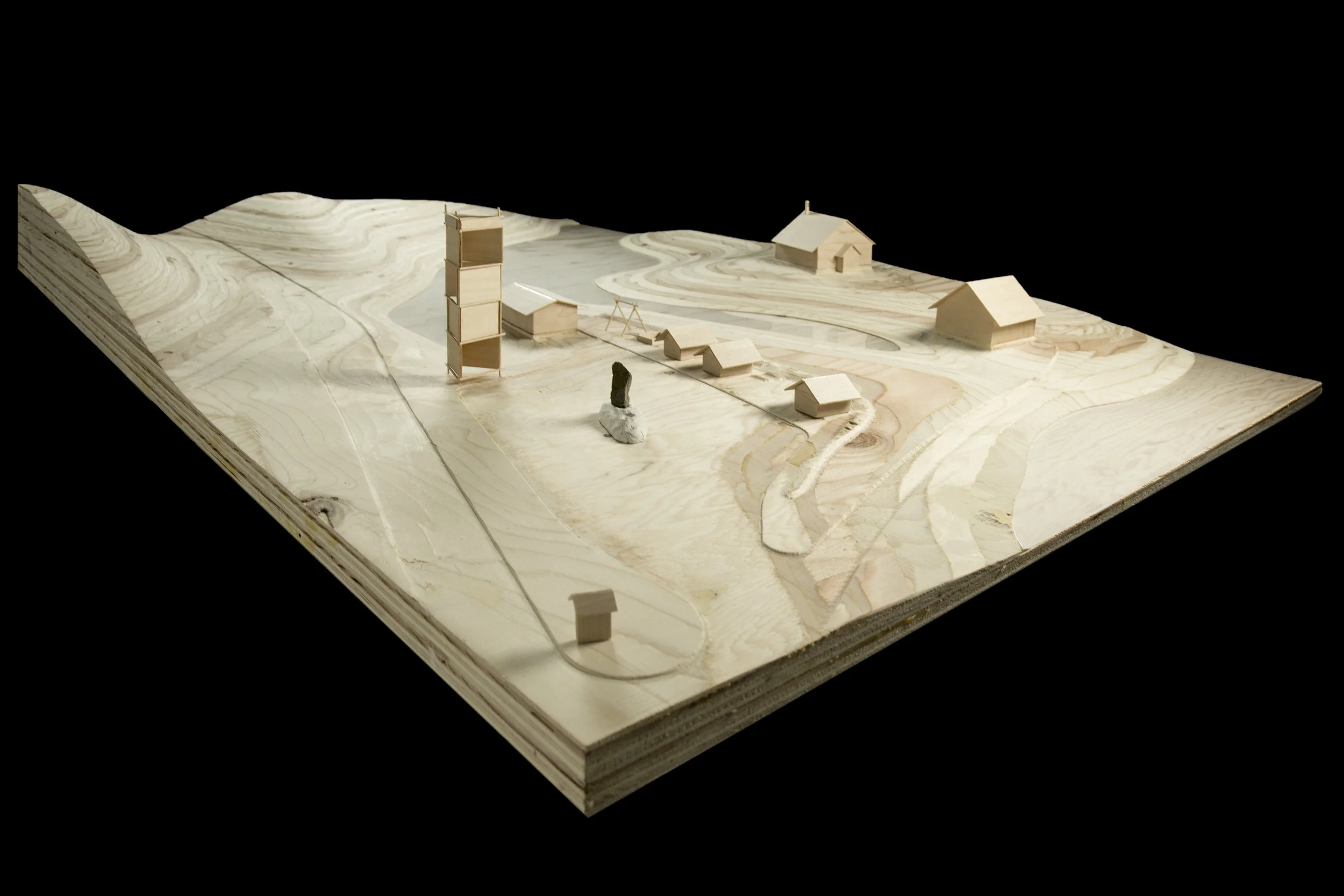

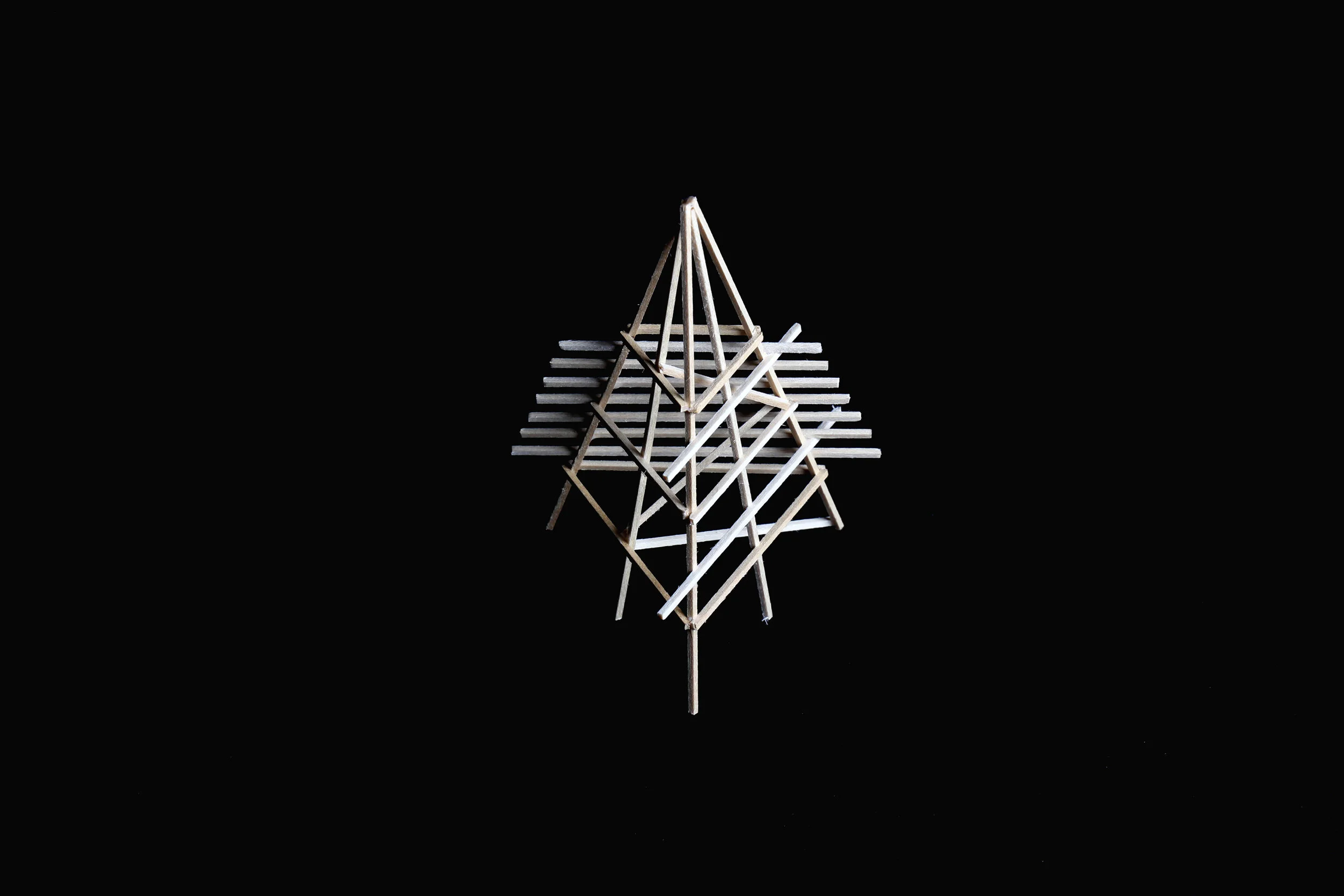

 Local sea kill marker (navigation tower) study model
       
     

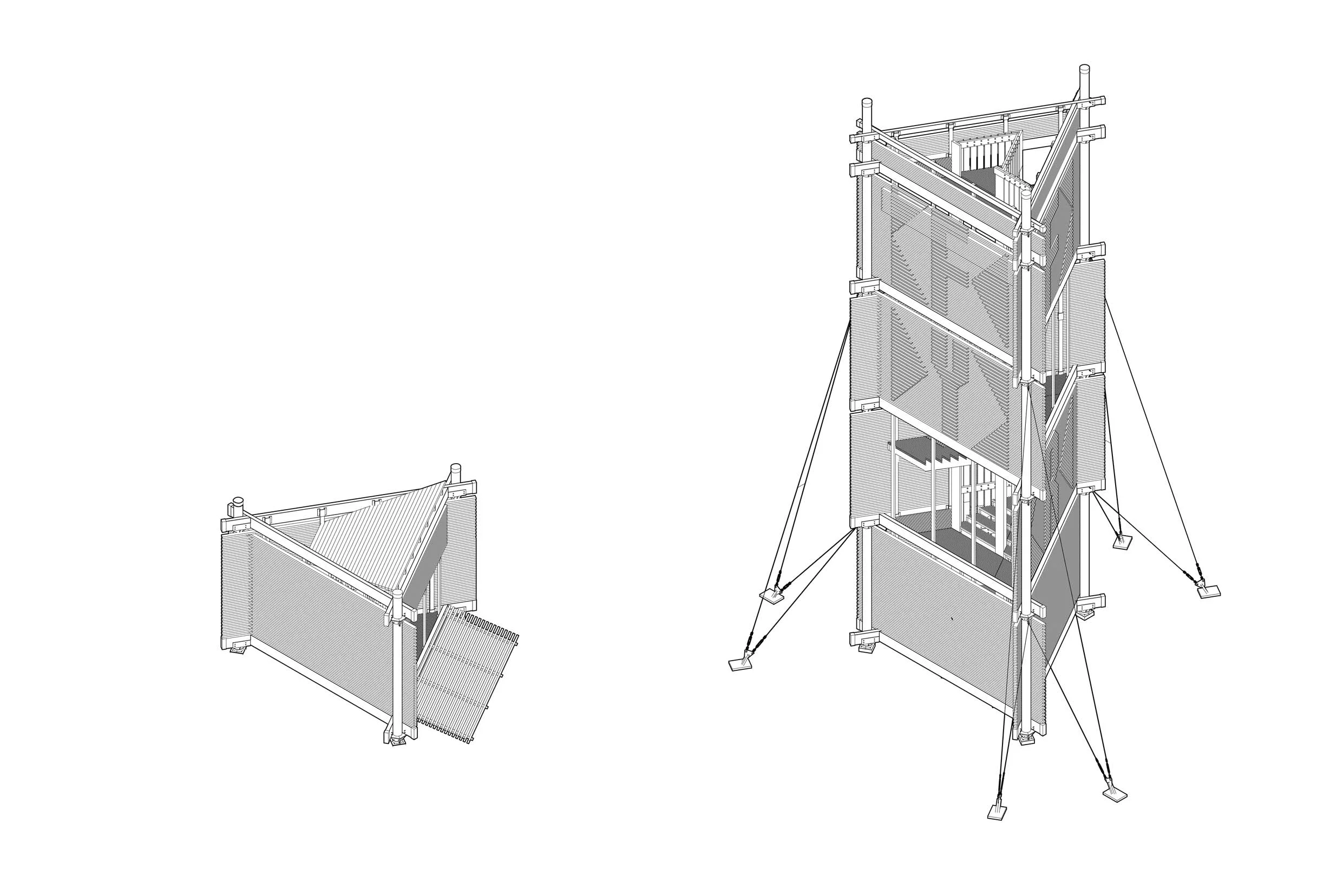

 Stand-alone vs. stacking module
       
     
 Wayfinding network for Flakstad, Lofoten.
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
THE MODULE
       
     
DETAILS
       
     

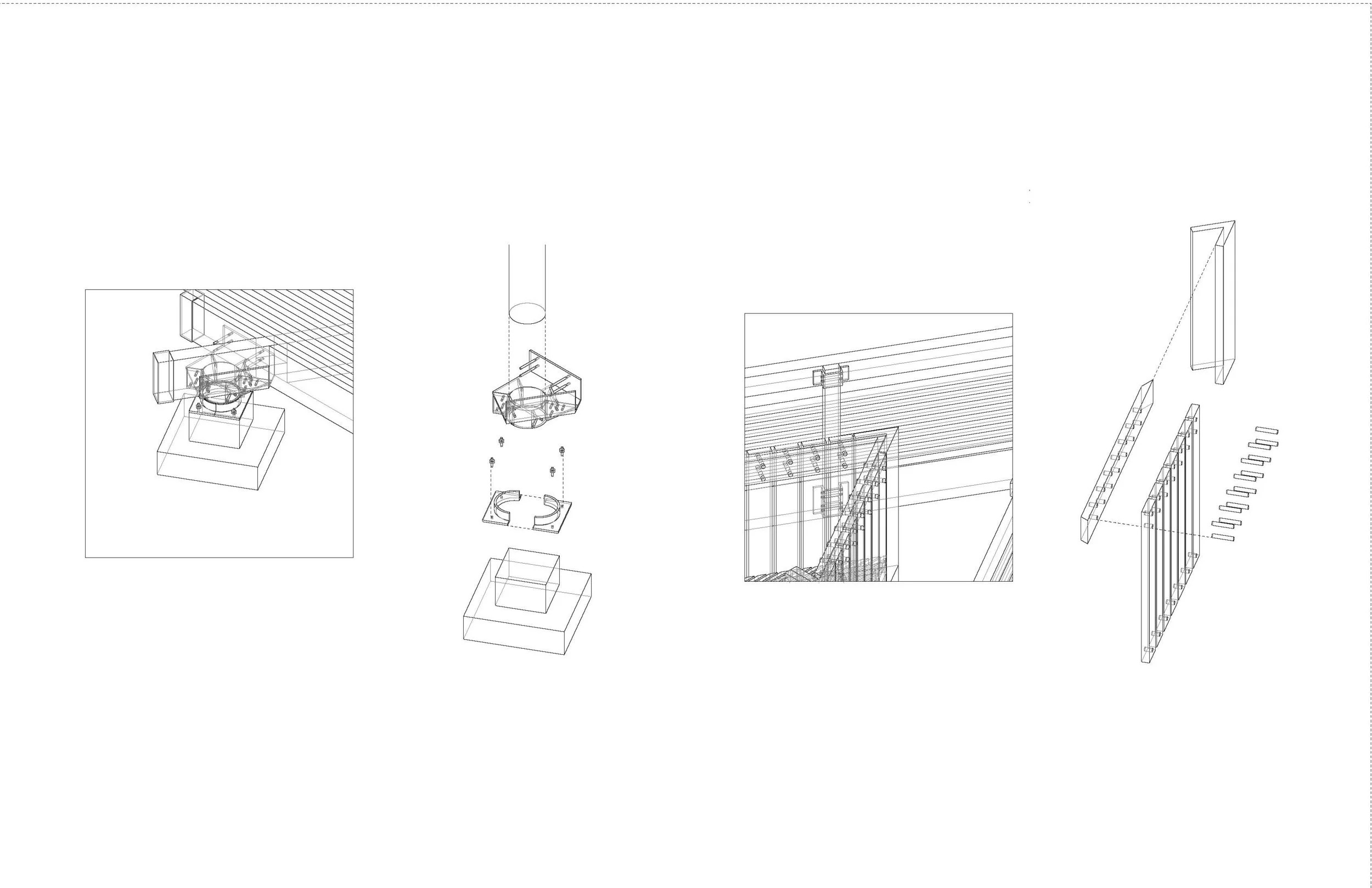

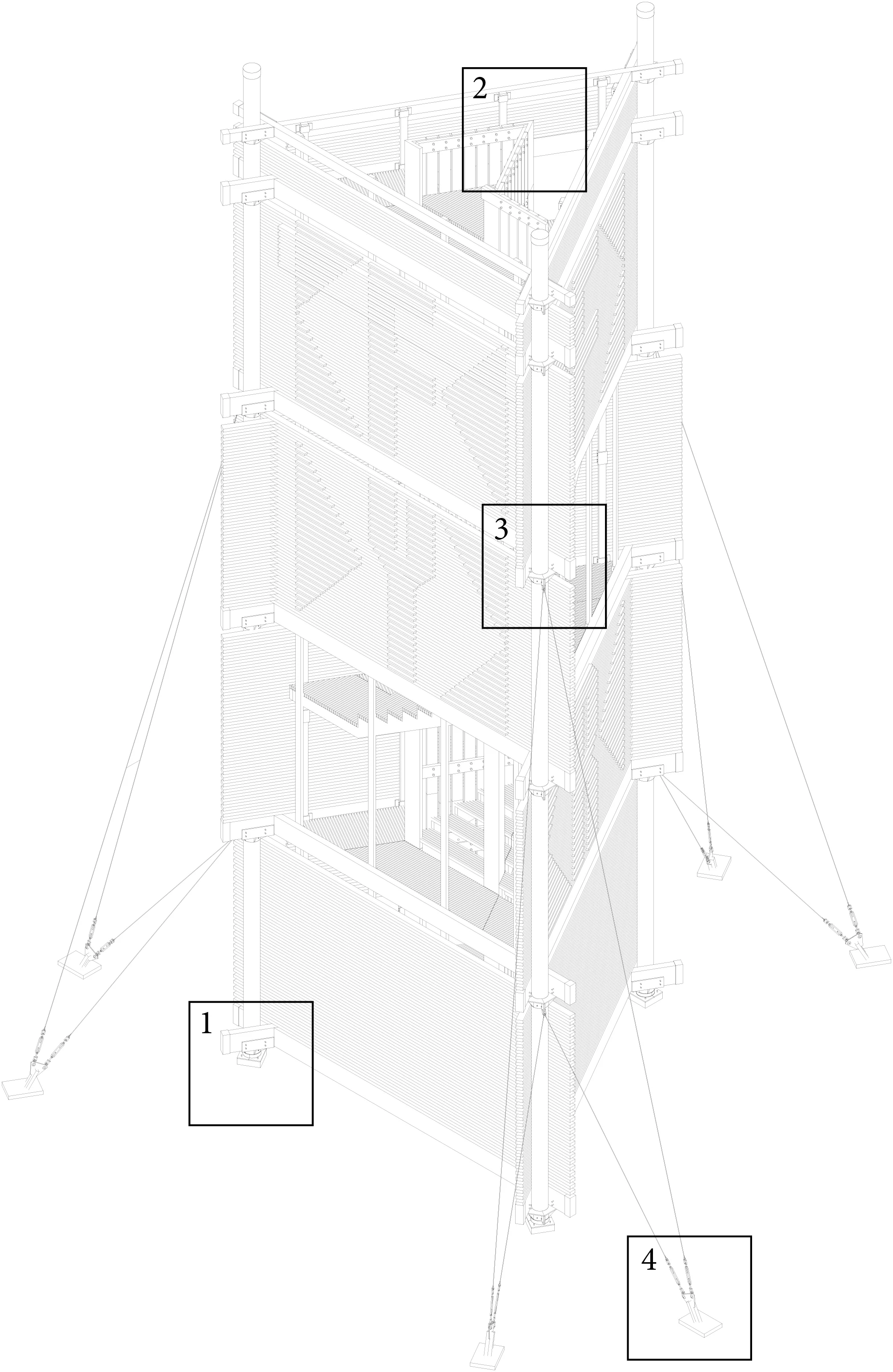

 1 Collar bracket at beam/column/foundation connection  2 Core structure breakdown (welded steel "V" column + beam + inner wall panels)
       
     
 3 Collar bracket at beam/column connection  4 Guy-wire to foundation connection detail
       
     
       
     
DEPLOYMENT ON SITE: DRAUGEN
       
     
 Suggested by the Flakstad municipality, Draugen functions as the gateway to the southernmost portion of Lofoten. The wayfinding tower will join existing programs such as picnic shelters, toilets, parking, and trash disposal to complete the identity of the site as a rest and information stop.
       
     
 Information/viewing experience
       
     
 level 1 >>> draugen
       
     
 level 2 >>> peak and bridges
       
     
 level 3 >>> northern lights and midnight sun
       
     
 level 4 >>> fredvang fishing village
       
     
       
     
       
     
 The stacked rotation of a variable core + facade module produces a flexible system for a new tourism infrastructure in Lofoten, Norway.
       
     

The stacked rotation of a variable core + facade module produces a flexible system for a new tourism infrastructure in Lofoten, Norway.

 Horizontal facade + vertical core
       
     

Horizontal facade + vertical core

 Superstructure + prefab core
       
     

Superstructure + prefab core

 Local sea kill marker (navigation tower) study model
       
     

Local sea kill marker (navigation tower) study model

 Stand-alone vs. stacking module
       
     

Stand-alone vs. stacking module

 Wayfinding network for Flakstad, Lofoten.
       
     

Wayfinding network for Flakstad, Lofoten.

THE MODULE
       
     
THE MODULE

Assembly diagram

THE MODULE
       
     
THE MODULE

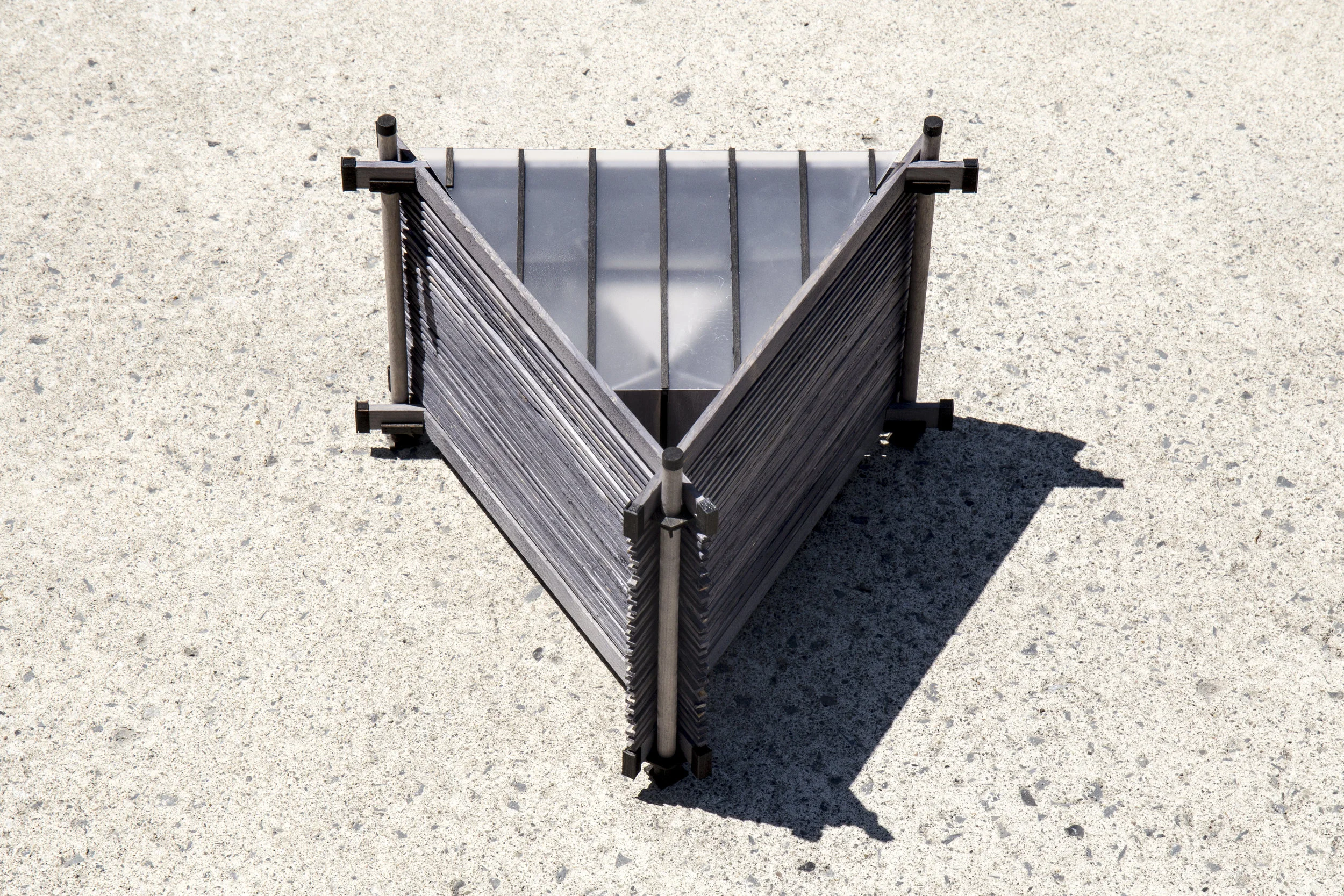

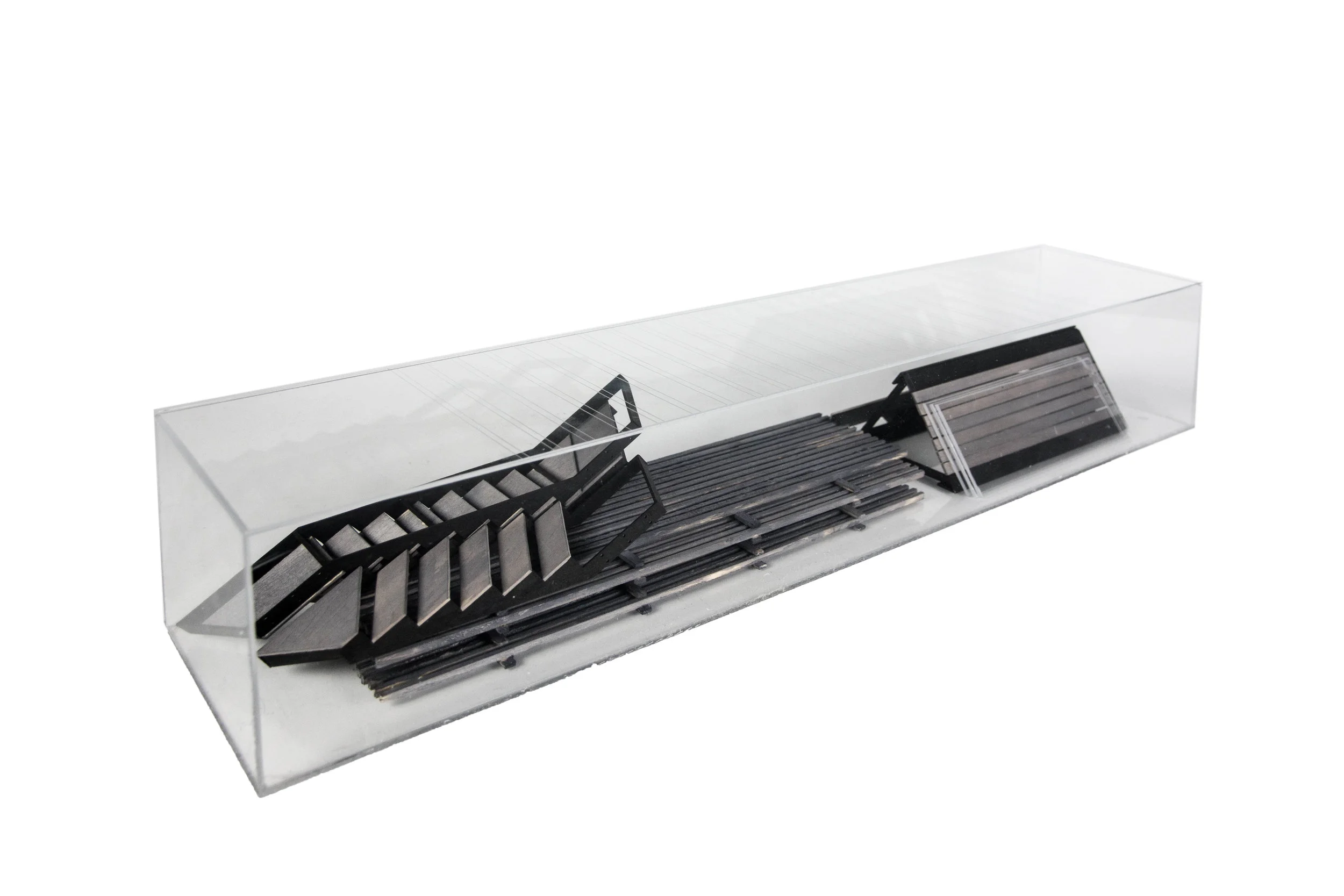

Designed to fit two modules per standard shipping container

THE MODULE
       
     
THE MODULE

Transportation and erection

THE MODULE
       
     
THE MODULE

Flexible program

THE MODULE
       
     
THE MODULE

Stand-alone bathroom module

THE MODULE
       
     
THE MODULE

Stand-alone bathroom module

THE MODULE
       
     
THE MODULE

Stand-alone bathroom module

THE MODULE
       
     
THE MODULE

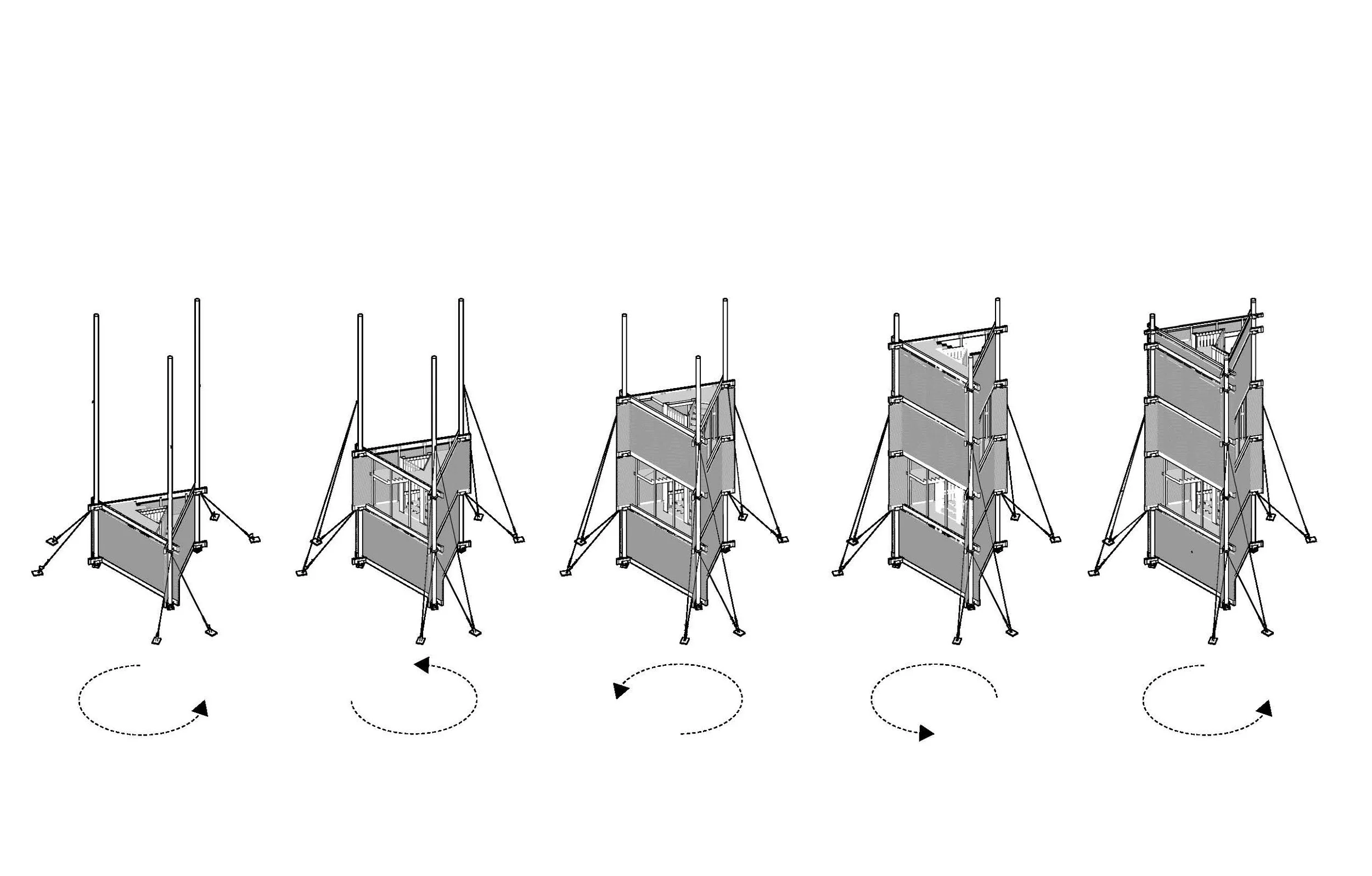

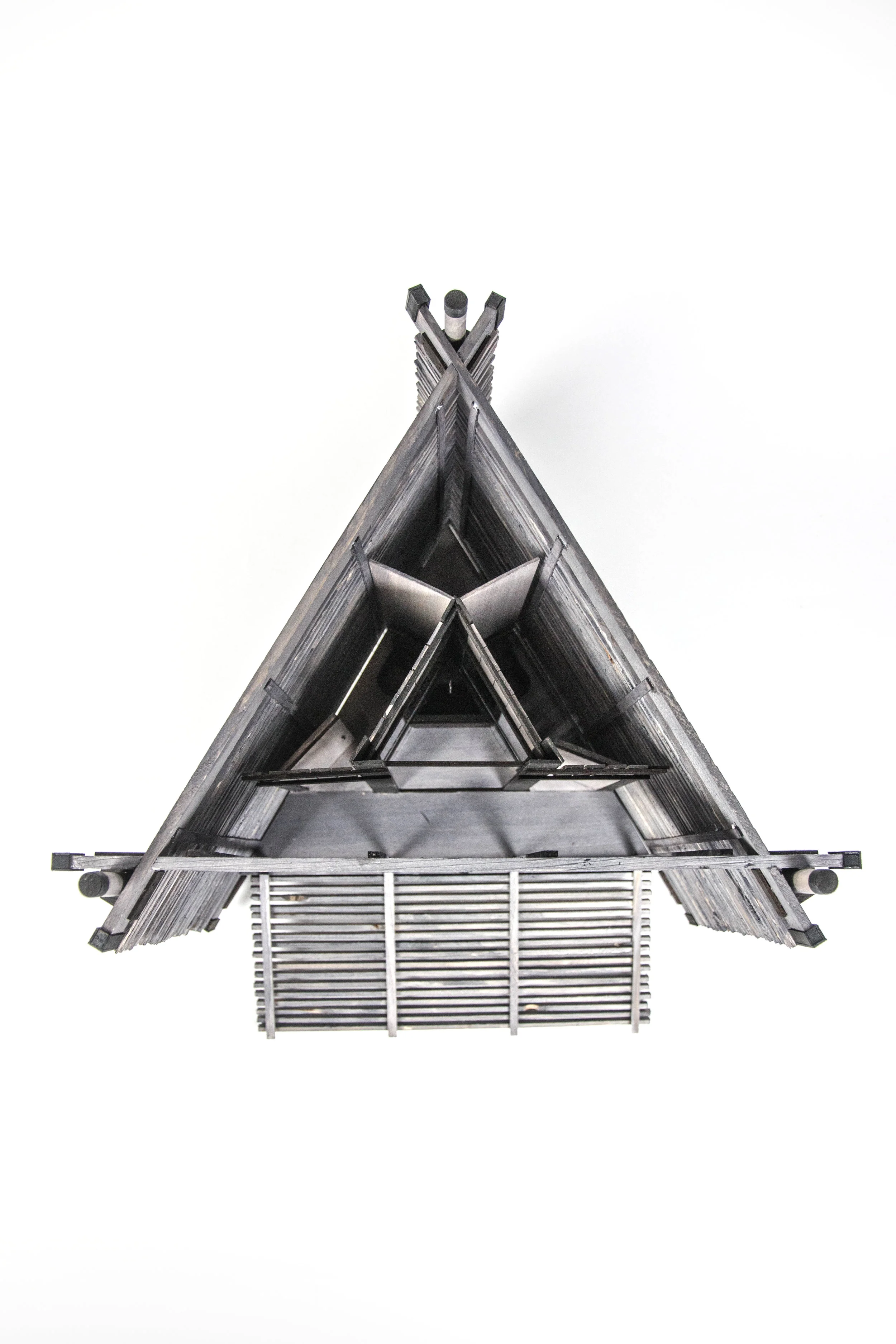

Stacking and rotating tower module

DETAILS
       
     
DETAILS
 1 Collar bracket at beam/column/foundation connection  2 Core structure breakdown (welded steel "V" column + beam + inner wall panels)
       
     

1 Collar bracket at beam/column/foundation connection

2 Core structure breakdown (welded steel "V" column + beam + inner wall panels)

 3 Collar bracket at beam/column connection  4 Guy-wire to foundation connection detail
       
     

3 Collar bracket at beam/column connection

4 Guy-wire to foundation connection detail

       
     
DEPLOYMENT ON SITE: DRAUGEN
       
     
DEPLOYMENT ON SITE: DRAUGEN
 Suggested by the Flakstad municipality, Draugen functions as the gateway to the southernmost portion of Lofoten. The wayfinding tower will join existing programs such as picnic shelters, toilets, parking, and trash disposal to complete the identity of the site as a rest and information stop.
       
     

Suggested by the Flakstad municipality, Draugen functions as the gateway to the southernmost portion of Lofoten. The wayfinding tower will join existing programs such as picnic shelters, toilets, parking, and trash disposal to complete the identity of the site as a rest and information stop.

 Information/viewing experience
       
     

Information/viewing experience

 level 1 >>> draugen
       
     

level 1 >>> draugen

 level 2 >>> peak and bridges
       
     

level 2 >>> peak and bridges

 level 3 >>> northern lights and midnight sun
       
     

level 3 >>> northern lights and midnight sun

 level 4 >>> fredvang fishing village
       
     

level 4 >>> fredvang fishing village

       
     
