Investigating the urban fabric of an informal settlement
       
     
 The polluted and flood-prone Almendares River runs through the fragmented outskirts of Havana, Cuba, culminating at its northernmost point at the mouth of the bay.
       
     
 An informal settlement called El Fanguito - the little mud - sits atop a precarious swath of muddy riverbank along the east side of the Lower Almendares River. This last portion of the river is the slowest and most contaminated part of its journey, often spilling over its banks into the homes of those living on its borders. The lack of infrastructure along this portion of the riverbank contributes to the transience of water, mud, informal structures, and people.
       
     
 As the Almendares continues to become more polluted by domestic wastewater, industrial runoff, and landfill leachate, the green zones that feed on the river for its water supply have been deteriorating, forming “cancer alleys” depleted of oxygen.   Due to a precarious interdependence between human settlements and the environment, hydrogeological dysfunctions and cultural identity become interlinked issues.
       
     
 Historical shrinking of the forest
       
     
 Watersheds and Almendares River
       
     
 Degradation of flora and fauna
       
     
FIGURE OF THE SITE
       
     
EXISTING BUILDINGS
       
     
INTERVENTION
       
     
UNIT DETAILS
       
     
 Long section
       
     
 Elevated street level plan
       
     
 Lower level plan
       
     
 Investigating the urban fabric of an informal settlement
       
     

Investigating the urban fabric of an informal settlement

 The polluted and flood-prone Almendares River runs through the fragmented outskirts of Havana, Cuba, culminating at its northernmost point at the mouth of the bay.
       
     

The polluted and flood-prone Almendares River runs through the fragmented outskirts of Havana, Cuba, culminating at its northernmost point at the mouth of the bay.

 An informal settlement called El Fanguito - the little mud - sits atop a precarious swath of muddy riverbank along the east side of the Lower Almendares River. This last portion of the river is the slowest and most contaminated part of its journey, often spilling over its banks into the homes of those living on its borders. The lack of infrastructure along this portion of the riverbank contributes to the transience of water, mud, informal structures, and people.
       
     

An informal settlement called El Fanguito - the little mud - sits atop a precarious swath of muddy riverbank along the east side of the Lower Almendares River. This last portion of the river is the slowest and most contaminated part of its journey, often spilling over its banks into the homes of those living on its borders. The lack of infrastructure along this portion of the riverbank contributes to the transience of water, mud, informal structures, and people.

 As the Almendares continues to become more polluted by domestic wastewater, industrial runoff, and landfill leachate, the green zones that feed on the river for its water supply have been deteriorating, forming “cancer alleys” depleted of oxygen.   Due to a precarious interdependence between human settlements and the environment, hydrogeological dysfunctions and cultural identity become interlinked issues.
       
     

As the Almendares continues to become more polluted by domestic wastewater, industrial runoff, and landfill leachate, the green zones that feed on the river for its water supply have been deteriorating, forming “cancer alleys” depleted of oxygen. Due to a precarious interdependence between human settlements and the environment, hydrogeological dysfunctions and cultural identity become interlinked issues.

 Historical shrinking of the forest
       
     

Historical shrinking of the forest

 Watersheds and Almendares River
       
     

Watersheds and Almendares River

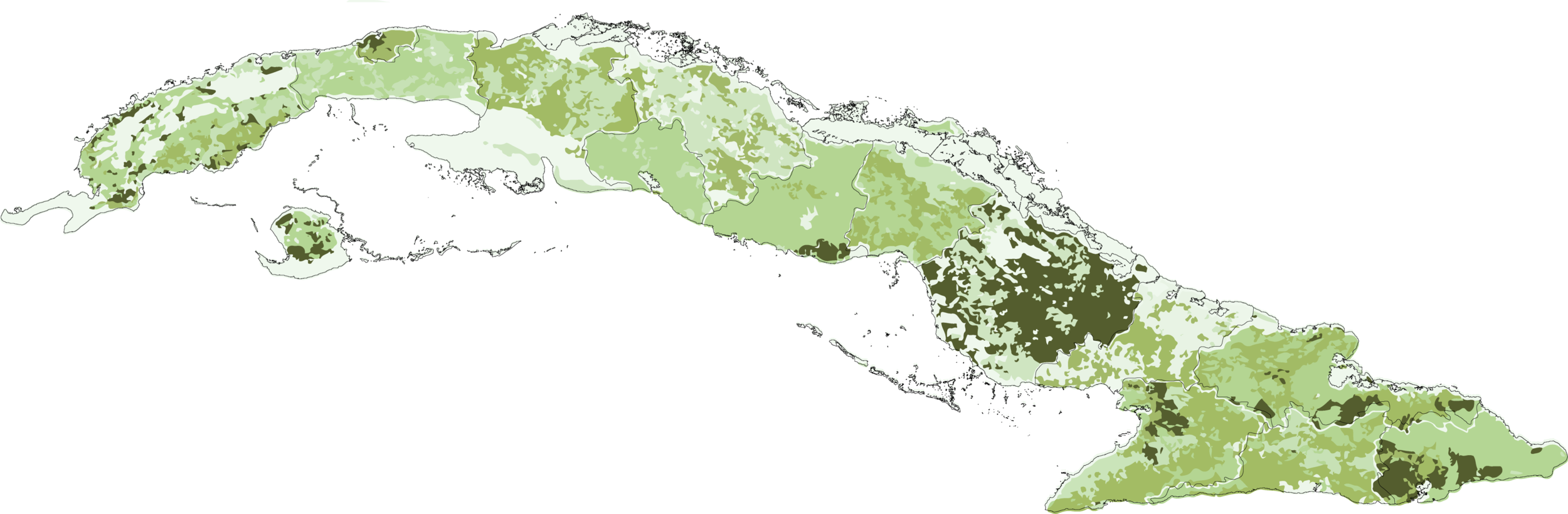

 Degradation of flora and fauna
       
     

Degradation of flora and fauna

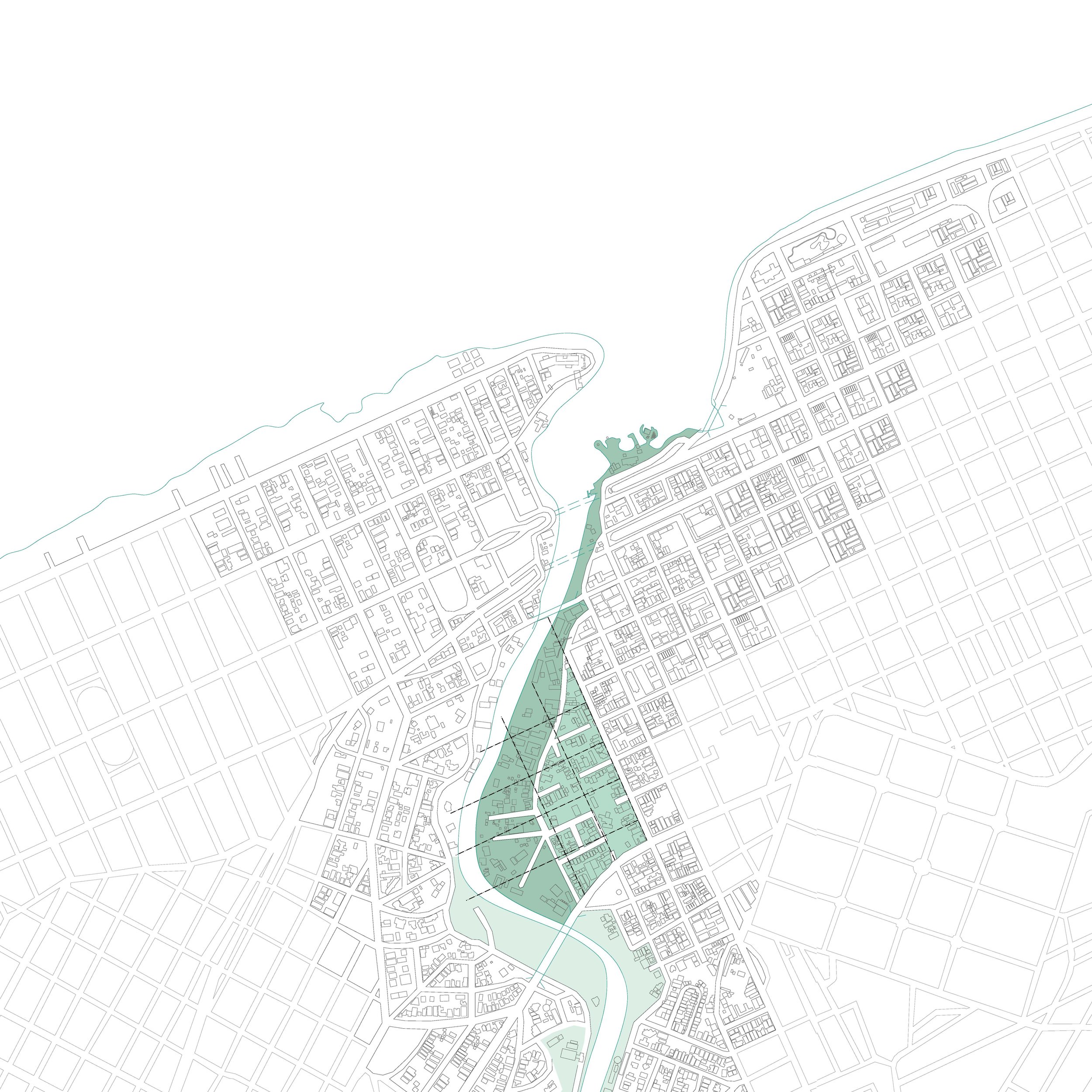

FIGURE OF THE SITE
       
     
FIGURE OF THE SITE

The site lacks the structure of a formal urban grid, becoming isolated from the rest of the city by a 40 foot retaining wall to the east and the Almendares to the west. These ruptures break the city grid and further deepen the social divide between the community and the city that has grown around it.

EXISTING BUILDINGS
       
     
EXISTING BUILDINGS

This project anticipates a future that must negotiate with rising sea levels, the continued shortage of urban housing, and the constant battle with deforestation and water contamination.

INTERVENTION
       
     
INTERVENTION

The proposal is an environmental infrastructure that introduces the urban grid of Havana to El Fanguito as a series of elevated city streets that connect the informal settlement to the rest of the urban fabric. This secondary grid hovers over the organic grid of El Fanguito, providing a new surface for growth and bringing essential services to the community. The introduction of this environmental infrastructure will give the riverbank back to the forest, allowing for the remediation of the water and the preservation of endemic flora and fauna.

UNIT DETAILS
       
     
UNIT DETAILS

The infrastructure is designed along a flexible column grid, with housing units implied by the spacing of the columns and the presence of service cores. The appropriation of the structure will be dictated individually as each household plugs in and fills the gaps, causing the new street grid to grow organically and, perhaps, disappear into the urban language of El Fanguito.

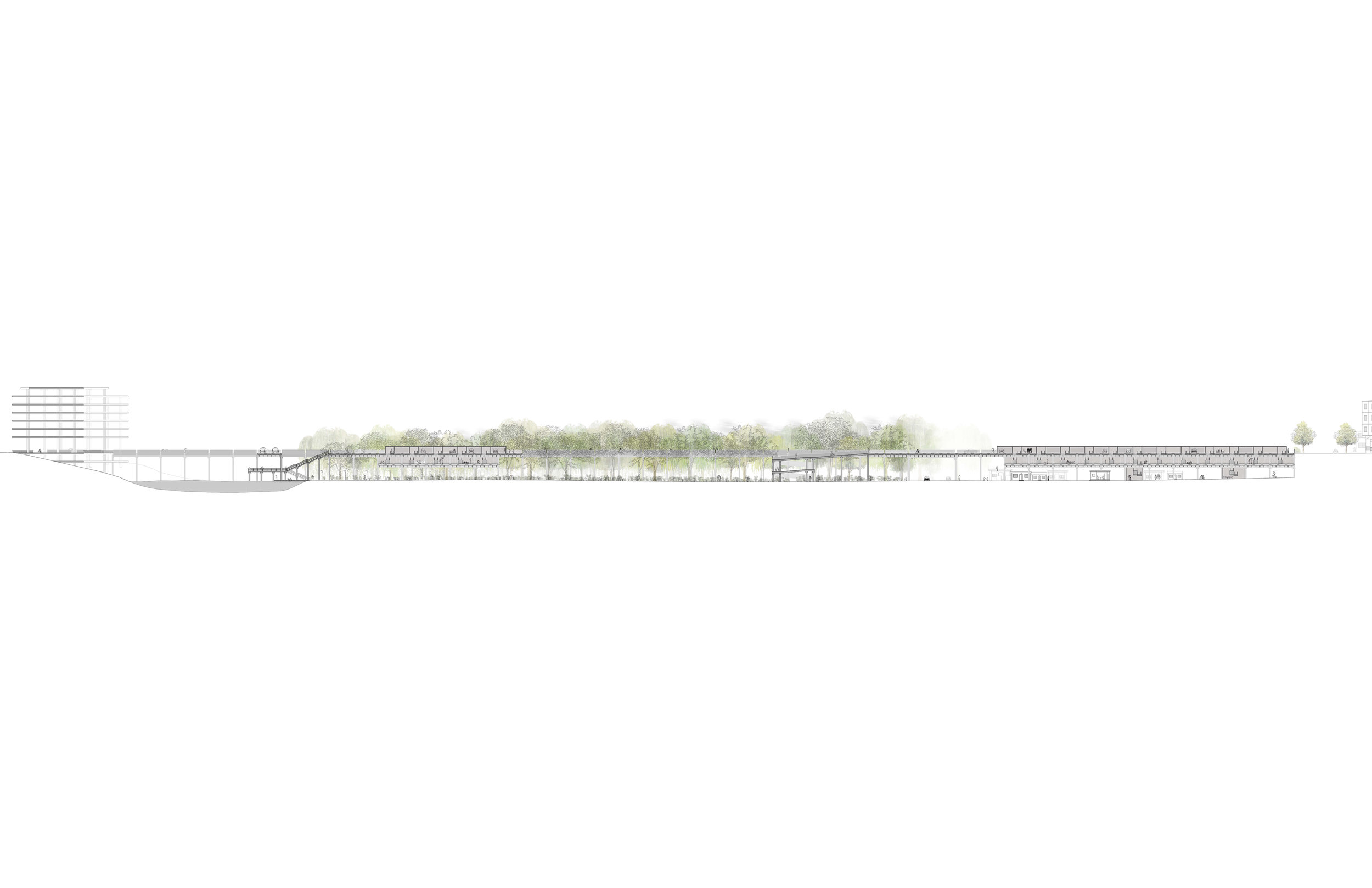

 Long section
       
     

Long section

 Elevated street level plan
       
     

Elevated street level plan

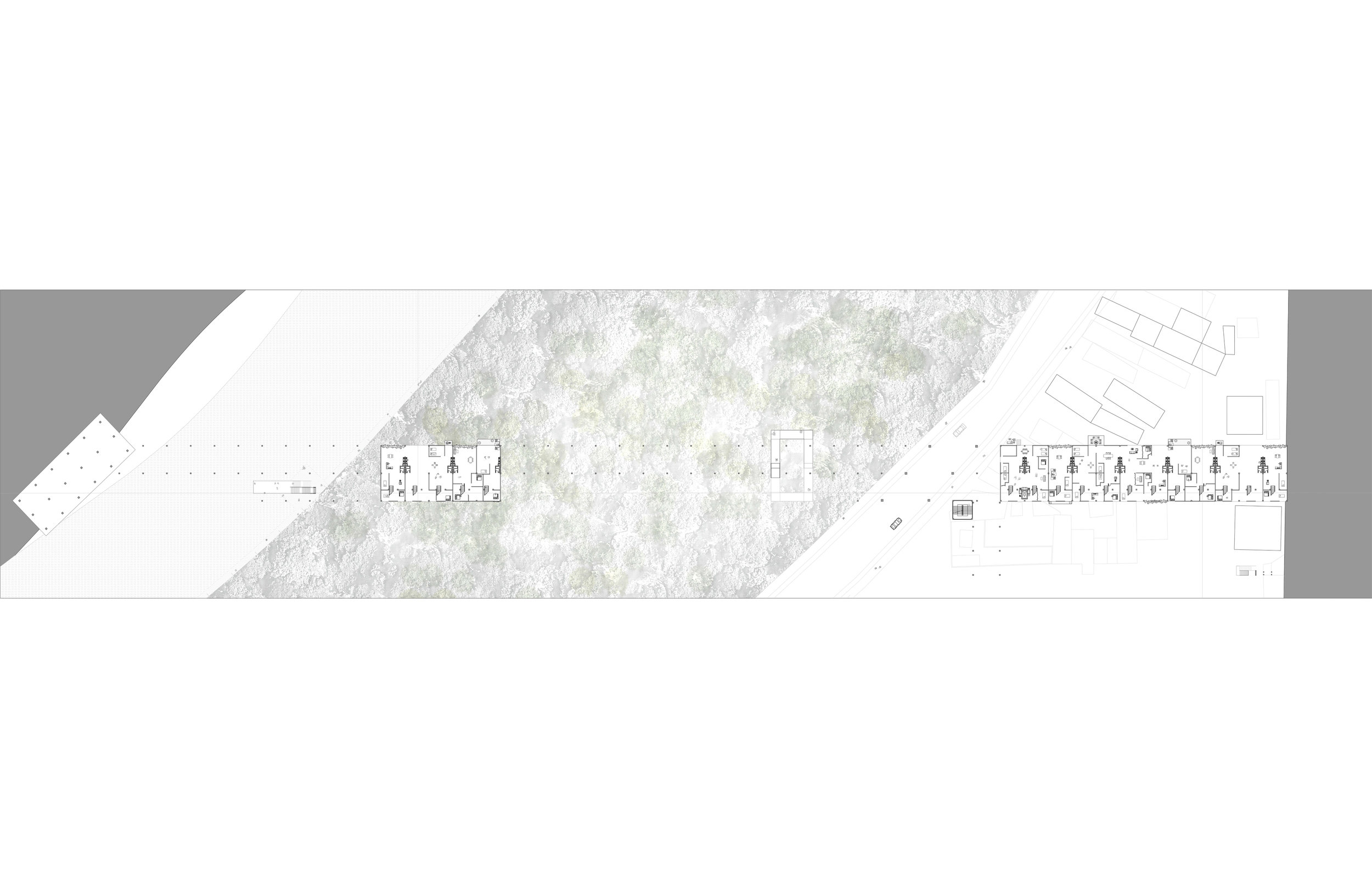

 Lower level plan
       
     

Lower level plan
